RAG Architecture Explained: Complete Guide to Retrieval-Augmented Generation Systems

Retrieval-Augmented Generation (RAG) has become one of the most important architectures in modern Artificial Intelligence systems. As enterprises increasingly deploy AI assistants, enterprise copilots, customer support bots, intelligent search systems, and document AI platforms, retrieval-based architectures are rapidly becoming foundational infrastructure for production AI applications.

Traditional Large Language Models (LLMs) are extremely powerful, but they still face several important limitations. They can hallucinate, generate outdated information, and struggle to access private enterprise knowledge dynamically.

That is exactly why RAG architecture became critical for enterprise AI systems.

Instead of relying only on pretrained model memory, RAG systems retrieve external information before generating responses. This creates AI systems that are more accurate, context-aware, scalable, and enterprise-ready.

Today, RAG architecture powers many advanced AI applications including:

• enterprise search systems
• AI chatbots
• document retrieval assistants
• legal AI platforms
• healthcare AI systems
• customer support copilots
• enterprise knowledge assistants

In this guide, you will learn how RAG architecture works, what the major components are, how retrieval systems improve AI accuracy, and why enterprises are rapidly adopting Retrieval-Augmented Generation systems.

In Simple Terms

What Is RAG Architecture?

RAG architecture is the complete system design used in Retrieval-Augmented Generation applications.

It combines:

• document ingestion
• semantic embeddings
• vector databases
• retrieval systems
• prompt augmentation
• language model generation

into one AI workflow.

Instead of answering questions entirely from training memory, the AI first retrieves relevant information from external knowledge sources before generating a response.

Think of RAG architecture as an AI system that researches information before answering users.

Why RAG Architecture Became Important

Modern enterprise AI systems require more than just language generation.

Organizations need AI systems that are:

• accurate
• grounded in real data
• connected to enterprise knowledge
• dynamically updated
• scalable for production use
• capable of semantic search

Traditional standalone LLMs struggle with these requirements.

RAG architectures solve many of these challenges simultaneously.

Traditional LLMs Can Hallucinate

Large Language Models generate responses by predicting language patterns.

They do not inherently verify facts.

As a result, AI systems sometimes generate incorrect information confidently.

This creates major risks in industries such as:

• healthcare
• finance
• legal services
• cybersecurity
• enterprise operations

RAG architecture reduces hallucinations by grounding responses in retrieved evidence.

AI Knowledge Becomes Outdated

Traditional models only know information available during training.

Once training is complete, the model does not automatically learn:

• new company policies
• updated product documentation
• changing regulations
• live operational data
• recent research

RAG systems solve this problem through dynamic retrieval.

Enterprises Need Access to Private Data

Most enterprise information exists inside:

• internal wikis
• cloud storage systems
• PDFs
• operational manuals
• enterprise databases
• support documentation
• CRM systems

Traditional public AI models cannot directly access this information.

RAG architecture enables AI systems to retrieve enterprise-specific knowledge securely.

Core Components of RAG Architecture

Understanding the major architectural components makes the entire RAG workflow easier to understand.

Component	Purpose
Data Sources	Knowledge repositories
Ingestion Layer	Collects enterprise data
Chunking Layer	Splits large documents
Embedding Model	Converts text into vectors
Vector Database	Stores embeddings
Retriever	Finds relevant information
Prompt Augmentation Layer	Injects retrieved context
LLM	Generates responses
Orchestration Layer	Coordinates workflows

Each component plays a critical role in retrieval quality and response accuracy.

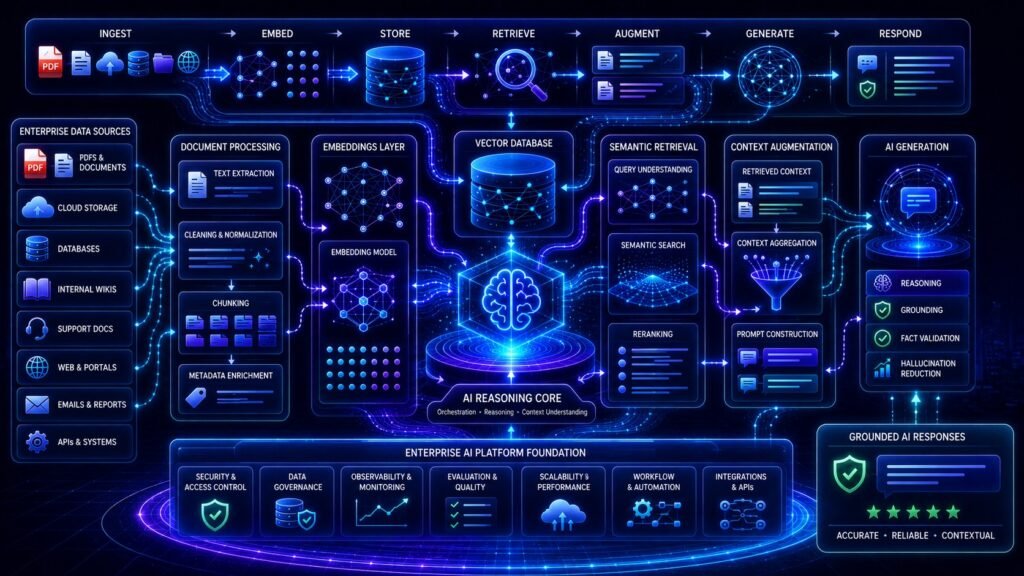

High-Level RAG Architecture Workflow

At a high level, RAG architecture operates in two major phases:

Phase	Purpose
Indexing Phase	Prepare enterprise knowledge
Retrieval + Generation Phase	Answer user queries

This separation is important because RAG systems must first prepare searchable knowledge before retrieval becomes possible.

Phase 1: The Indexing Architecture

The indexing phase prepares enterprise knowledge for semantic retrieval.

Step 1: Data Ingestion

The ingestion layer collects information from external knowledge sources such as:

• PDFs
• cloud documents
• websites
• support systems
• enterprise databases
• operational manuals
• research papers
• internal wikis

These files become the AI knowledge base.

The quality of the data strongly affects overall RAG performance.

Poor documentation creates weak retrieval quality and inaccurate responses.

This is why enterprise data quality is one of the most important parts of production AI architecture.

Step 2: Document Chunking

Large documents are divided into smaller searchable sections called chunks.

For example:

A 700-page operations manual may be divided into hundreds of semantic text segments.

Chunking improves retrieval precision because smaller chunks are easier to retrieve contextually.

If chunks are too large:

• retrieval becomes noisy
• irrelevant information increases
• prompt quality decreases

If chunks are too small:

• important context may disappear
• retrieval becomes fragmented

Choosing the right chunk size is one of the most important optimization tasks in modern RAG systems.

Step 3: Embedding Generation

The chunks are converted into embeddings.

What Are Embeddings?

Embeddings are numerical vector representations of meaning.

Instead of matching exact keywords, embeddings allow systems to understand semantic similarity.

For example:

• “refund policy”
• “return procedure”
• “cancellation workflow”

may generate similar embeddings because they share contextual meaning.

This enables semantic retrieval instead of traditional keyword search.

Embeddings are one of the most important technologies behind modern AI retrieval systems.

Step 4: Vector Database Indexing

The embeddings are stored inside vector databases such as:

• Pinecone
• Weaviate
• Chroma
• Milvus

Vector databases are optimized for semantic retrieval at scale.

Unlike traditional databases, vector databases retrieve information based on contextual similarity rather than exact keyword matches.

This dramatically improves retrieval relevance.

Vector databases have become foundational infrastructure for enterprise RAG architecture.

Phase 2: Retrieval and Generation Architecture

Once indexing is complete, the system can answer user queries.

Step 5: User Query Processing

A user submits a question.

Example:

“What is the company reimbursement policy?”

The system now initiates the retrieval workflow.

The query becomes the starting point for semantic search.

Step 6: Query Embeddings Are Generated

The query is converted into embeddings using the same embedding model used earlier.

This allows semantic comparison between:

• the user question
• indexed document chunks

Even if wording differs, semantically related information can still be retrieved.

For example:

“How do employee reimbursements work?”

may retrieve:

“travel expense compensation guidelines”

This is one reason why RAG architectures outperform traditional search systems.

Step 7: Semantic Retrieval

The retriever searches the vector database for the most relevant document chunks.

This stage is called retrieval.

The retriever returns contextually relevant information based on semantic similarity.

This retrieval stage fundamentally differentiates RAG systems from standalone LLM systems.

Instead of relying entirely on memory, the AI retrieves grounded evidence before generating answers.

Retrieval quality strongly influences final answer quality.

Step 8: Prompt Augmentation

The retrieved information is inserted into the prompt sent to the language model.

This stage is called prompt augmentation.

The prompt now includes:

• user query
• retrieved document context
• enterprise information
• system instructions

Instead of guessing, the AI now has supporting evidence before generating responses.

This dramatically improves factual grounding.

Step 9: Response Generation

The language model generates the final answer using:

• retrieved information
• reasoning capabilities
• prompt instructions
• natural language generation

This final stage is called generation.

Together, retrieval plus generation create the complete Retrieval-Augmented Generation architecture.

The result is usually more accurate, contextual, and enterprise-ready than standalone LLM responses.

Why RAG Architecture Improves AI Systems

RAG architecture solves several major enterprise AI problems simultaneously.

Better Accuracy

The AI retrieves actual information before responding.

This improves factual grounding significantly.

For enterprise systems, grounded responses are often more important than creative generation.

Reduced Hallucinations

One of the biggest advantages of RAG architecture is hallucination reduction.

The system retrieves supporting information before generating answers.

This improves reliability and trust.

Access to Updated Information

Traditional LLMs only know information available during training.

RAG systems retrieve updated information dynamically without retraining the model continuously.

Enterprise Knowledge Integration

RAG systems work with:

• internal company documents
• operational workflows
• support systems
• knowledge bases
• technical documentation
• enterprise databases

This dramatically increases enterprise AI usefulness.

Better User Experience

Users receive:

• more accurate answers
• contextual responses
• conversational retrieval
• faster knowledge discovery

This improves enterprise productivity significantly.

Advanced RAG Architecture Patterns

Modern enterprise systems often use advanced retrieval optimizations.

Hybrid Search Architecture

Combines:

• semantic retrieval
• keyword retrieval

for stronger performance.

Re-Ranking Systems

Re-ranking models improve retrieval quality by intelligently sorting retrieved results.

Metadata Filtering

Enterprise systems often filter retrieval using:

• department
• permissions
• document type
• timestamps
• business categories

This improves enterprise relevance and security.

Multi-Step Retrieval

Some advanced architectures perform multiple retrieval passes for deeper contextual understanding.

Agentic RAG Architecture

Modern AI agents increasingly combine:

• reasoning
• retrieval
• workflow orchestration
• tool usage

inside autonomous enterprise systems.

Real-World RAG Architecture Use Cases

Enterprise Search Systems

Employees retrieve company information conversationally across multiple enterprise systems.

Customer Support AI

Support assistants retrieve troubleshooting workflows before responding to customers.

Legal AI Platforms

Legal systems retrieve contracts and compliance documentation dynamically.

Healthcare AI Systems

Healthcare assistants retrieve treatment protocols and medical guidelines before answering.

Research Assistants

Researchers retrieve technical papers and scientific documentation conversationally.

Ecommerce AI Systems

AI assistants retrieve inventory, product details, and shipping information dynamically.

Common Challenges in RAG Architecture

Despite their advantages, RAG systems still face several challenges.

Poor Retrieval Quality

Weak retrievers significantly reduce answer quality.

Infrastructure Complexity

RAG systems require:

• embeddings
• vector databases
• orchestration systems
• retrieval pipelines
• monitoring infrastructure

This increases engineering complexity.

Outdated Knowledge Bases

Old documents create inaccurate responses.

Latency

Retrieval stages add additional processing time.

Security and Permissions

Enterprise systems must ensure users only access authorized information.

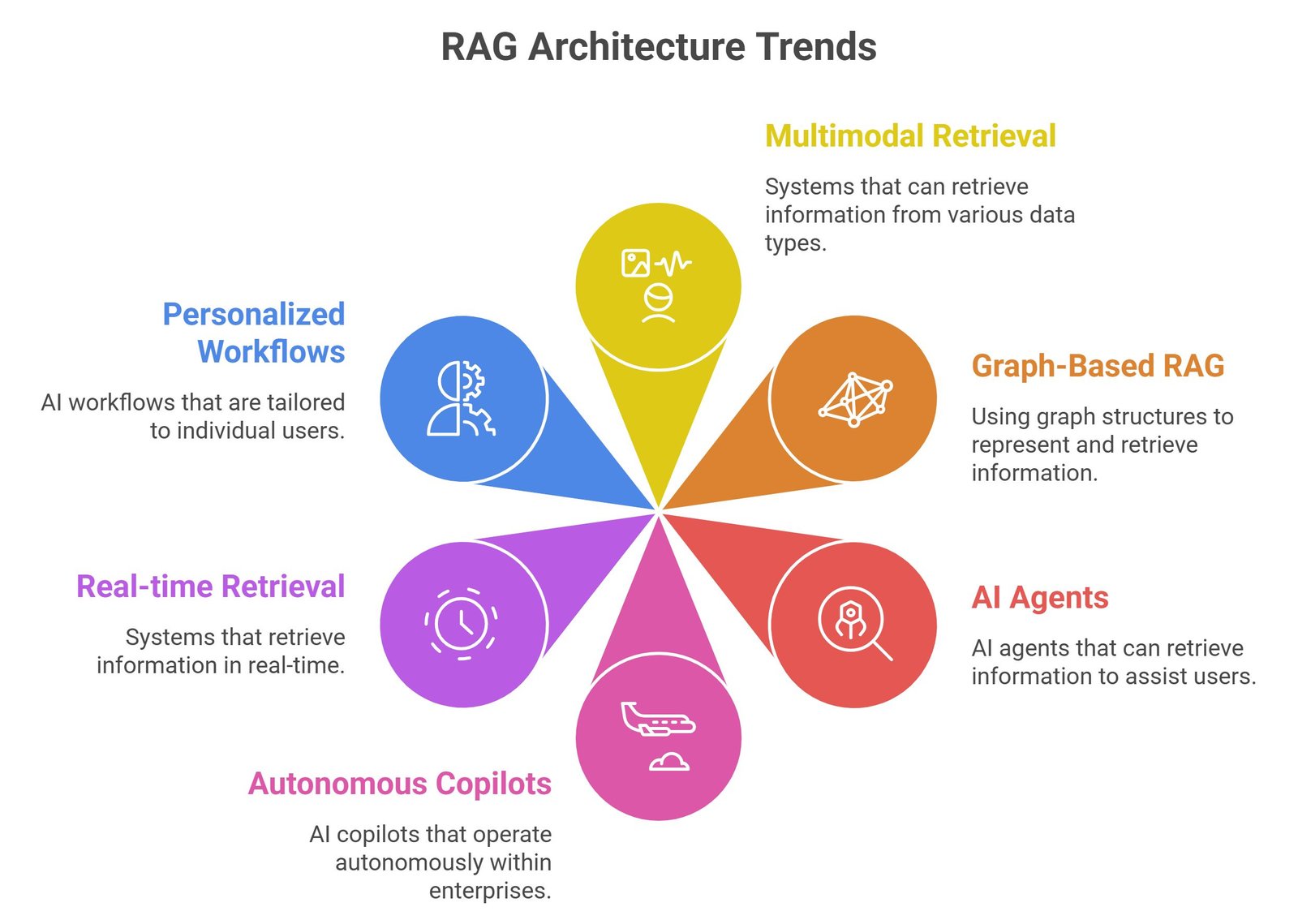

Future of RAG Architecture

RAG architectures are evolving rapidly.

Major trends include:

• multimodal retrieval systems
• graph-based RAG
• AI agents with retrieval capabilities
• autonomous enterprise copilots
• real-time retrieval systems
• personalized enterprise AI workflows

---

---

Many experts believe retrieval-based AI architectures will become default infrastructure for enterprise AI systems.

Suggested Read:

• RAG Pipeline Explained
• How RAG Works
• RAG Explained Simply
• RAG for Enterprise Search
• RAG for Document Search
• LLM vs RAG

FAQ: RAG Architecture Explained

What is RAG architecture?

RAG architecture is the system design used in Retrieval-Augmented Generation workflows to retrieve information before generating responses.

Why is RAG architecture important?

RAG improves AI accuracy, reduces hallucinations, and enables enterprise knowledge retrieval.

What are embeddings in RAG architecture?

Embeddings are vector representations of meaning used for semantic retrieval.

What is a vector database?

A vector database stores embeddings and enables semantic search.

Does RAG replace LLMs?

No. RAG enhances LLM systems by adding retrieval capabilities.

Final Takeaway

Understanding RAG architecture explained is important because retrieval-powered AI systems are becoming foundational infrastructure for modern enterprise AI.

By combining semantic retrieval with language generation, RAG architectures help AI systems become more accurate, grounded, scalable, and enterprise-ready.

That architectural shift is transforming how AI assistants, enterprise search systems, customer support platforms, and intelligent knowledge systems operate today.
